Product Overview:

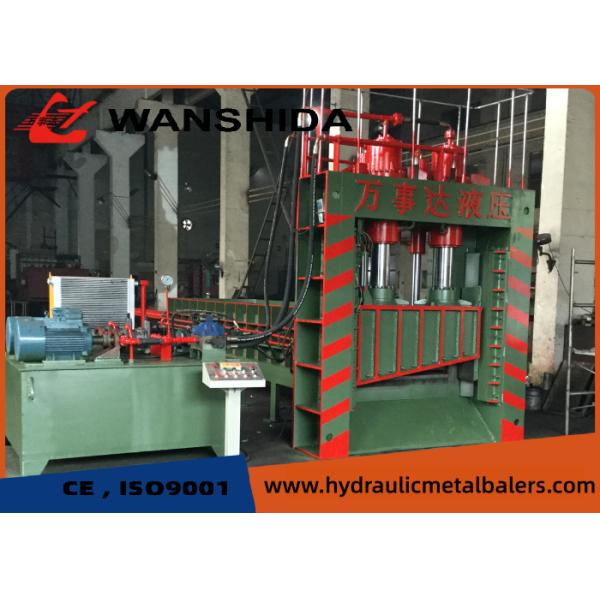

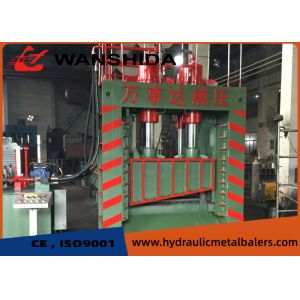

The Q43L-8000 Heavy Duty Gantry Scrap Shear is a robust industrial machine built for cutting and downsizing large pieces of scrap metal, steel structures, and oversized containers. Powered by an 8000 kN hydraulic system, it delivers exceptional shearing strength and reliable performance in demanding recycling operations. With its large loading chamber, precision blades, and automated PLC controls, this gantry shear is widely applied in metal recycling plants, steel mills, and heavy scrap processing yards where efficiency and durability are critical.
Key Features
Exceptional Cutting Power: 8000 kN hydraulic force provides the strength needed for handling heavy and oversized scrap.
Spacious Loading Chamber: 8000 * 1950 * 900 mm chamber accommodates bulky materials with ease.
Durable Blade Design: 2000 mm cutting blade ensures clean and efficient shearing of thick steel and large profiles.
Stable Cooling System: Air-cooled hydraulic oil system maintains reliable performance during continuous operation.
Advanced Hydraulic Technology: 25 MPa working pressure with a 270 kW motor delivers consistent power output.
Efficient Productivity: Cutting speed of 2–3 strokes per minute improves processing capacity.
Automated Control: PLC operation system provides precise control, reduces manual workload, and enhances safety.
Heavy-Duty Structure: With a weight of 92 tons, the machine is built for stability and long service life.
Applications
Processing heavy steel scrap, beams, and large structural materials
Cutting used shipping containers, plates, and thick metal sheets
Recycling bulky ferrous and non-ferrous metals
Large-scale dismantling projects in steel plants and heavy industries
High-capacity scrap yards and professional metal recycling facilities
FAQ
Q1: What types of scrap can the Q43L-8000 shear process?
A1: It is suitable for heavy steel scrap, beams, plates, large containers, and both ferrous and non-ferrous oversized materials.
Q2: How is the machine cooled during continuous operation?
A2: The machine uses an air-cooled hydraulic oil system, which helps maintain stable performance even under heavy-duty use.
Q3: Is the shear easy to operate?
A3: Yes, it is equipped with a PLC automatic control system, making operation safe, precise, and user-friendly.
Q4: Can the machine specifications be customized?
A4: Yes, we can adjust the loading chamber size, blade length, and other parameters based on customer requirements.
Q5: What is the warranty period and after-sales support?
A5: The standard warranty is 12 months for major components, and we provide lifelong technical support and spare parts supply.
Technical Specifications
| No. | Model | Press Box Size (mm) | Blade Size (mm) | Cutting Speed (strokes/min) | Power |
| 1 | Q43L-3150 | 4000x1300x700 | 1300 | 2-3 | 37kW x 2 |
| 2 | Q43L-4000 | 6000x1400x700 | 1400 | 2-3 | 45kW x 2 |
| 3 | Q43L-5000 | 6000x1400x750 | 1400 | 2-3 | 45kW x 3 |
| 4 | Q43L-6300 | 7000x1800x900 | 1800 | 2-3 | 45kW x 5 |
| 5 | Q43L-8000 | 8000x2000x1100 | 2000 | 2-3 | 45kW x 6 |
| 6 | Q43L-10000 | 8000x2000x1100 | 2000 | 2-3 | 45kW x 8 |
| 7 | Q43L-12500 | 9000x2000x1200 | 2000 | 2-3 | 75kW x 6 |
